How to import your data using the Excel template

The import template can help you get your basic data in place, but it will not take you all the way through the data creation process.

The Excel import template allows you to import your product and packaging master data into GS1Trade Packaging. In other words, you can use the import template to upload data about products, packaging components, and packaging units, as well as linking components, units, and products together.

You do not need to fill out the entire template. You can choose to import product data or packaging components only. Likewise, it is not required to link components, units, and products in order to import the file - this can also be done later directly in Trade Packaging.

Please note: The data import file can contain a maximum of 200 rows per tab - e.g. 200 products, 200 units, and 200 components. If you need to import more, download a new file and continue your work there.

After importing your basic data, you will need to complete the following tasks in GS1Trade Packaging:

Do you have many products?

We generally recommend asking your suppliers to help upload the data. The most efficient approach is for suppliers to register directly in GS1Trade Packaging and share data with their customers in the system. This saves time for both suppliers and customers - while also ensuring higher data quality.

Step 1: Download the import template from GS1Trade Packaging

The import template must be downloaded directly from GS1Trade Packaging. Each template contains a unique ID, which is why it is important that you always download templates from your own workspace.

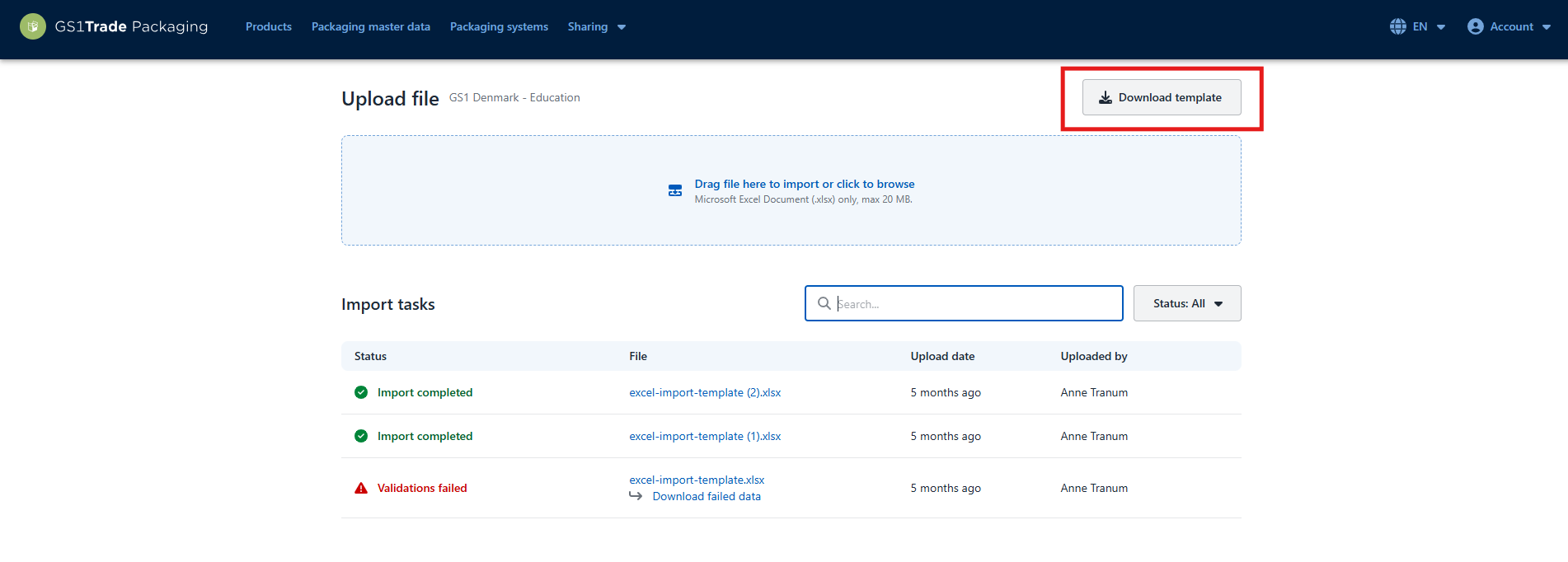

From the GS1Trade Packaging homepage, click Import in the top right corner and then Download template. Here you can choose to download a single template for your own use or multiple templates for your suppliers.

If you want to use the import template to collect data from your suppliers, you can choose to download several files at once. It is important that each supplier receives their own unique import template. Data will be overwritten if you import the same file with the same ID more than once.

In the following example, we will focus on downloading a single template for your own use.

Step 2: Enter product master data

Go to the Product tab. Fill in the required fields; Brand name, Product name, Language, Product ID, GTIN (optional), Net content, Unit of measurement, Status.

Net content can be entered as whole numbers or decimals, but not as a range.

Please note:

  • You can enter a maximum of 50 characters in each field (e.g. in the product description field).
  • The file must not contain duplicate GTINs.

Specify a Product reference identifier for each product. This must be a number between 1-1000. We recommend numbering them sequentially.

Please note: Each reference identifier must be unique and can only be used once in the template. If you use the same number more than once, Column C will turn red to indicate a duplicate.

Step 3: Create packaging units

Go to the PackagingUnit tab. Fill in the following fields: Name, Type, and Status.

Specify a Packaging unit reference identifier for each packaging unit. This must be a number between 1-1000. You cannot reuse the numbers you used in Step 2.

Please note: Each reference identifier must be unique and can only be used once in the template. If you use the same number more than once, Column C will turn red to indicate a duplicate.

Step 4: Create packaging components

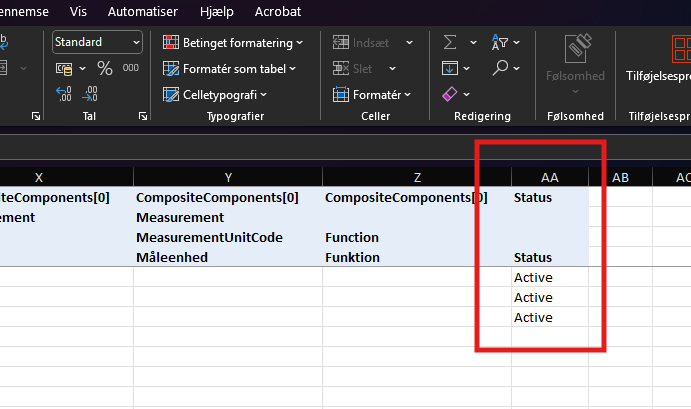

Go to the PackagingComponent tab. The following fields are mandatory: Name, Element type, Type, Weight, Unit of measurement, and Status (far right, Column AA). Weight can be entered as whole numbers or decimals, but not as a range.

You may also fill in additional technical attributes in Columns I-Z. These are optional and not required to import the template.

Specify a Packaging component reference identifier for each component. This must be a number between 1-1000. We recommend numbering them sequentially.

Please note: Each reference identifier must be unique and can only be used once in the template. If you use the same number more than once, Column C will turn red to indicate a duplicate.

Step 5: [Optional] Link packaging components to packaging units

Now that products, packaging components, and packaging units have been created, you can choose to link components to units and units to products.

Please note: Linking is not required in the template for the file to be imported. In many cases, it may be easier to link the units afterwards directly in GS1Trade Packaging.

If you choose to link in GS1Trade Packaging, we recommend using clear naming conventions so you can easily distinguish the components - e.g. "Component for Product A".

Go to the ComponentToUnitAssociate tab:

  • Enter the component reference identifier in Column B.
  • Enter the packaging unit reference identifier in Column D.

Now the packaging components are linked to the packaging unit. The next step is to link the packaging unit to the product.

Please note: The same component can be linked to multiple units.

Step 6: [Optional] Link packaging units to products

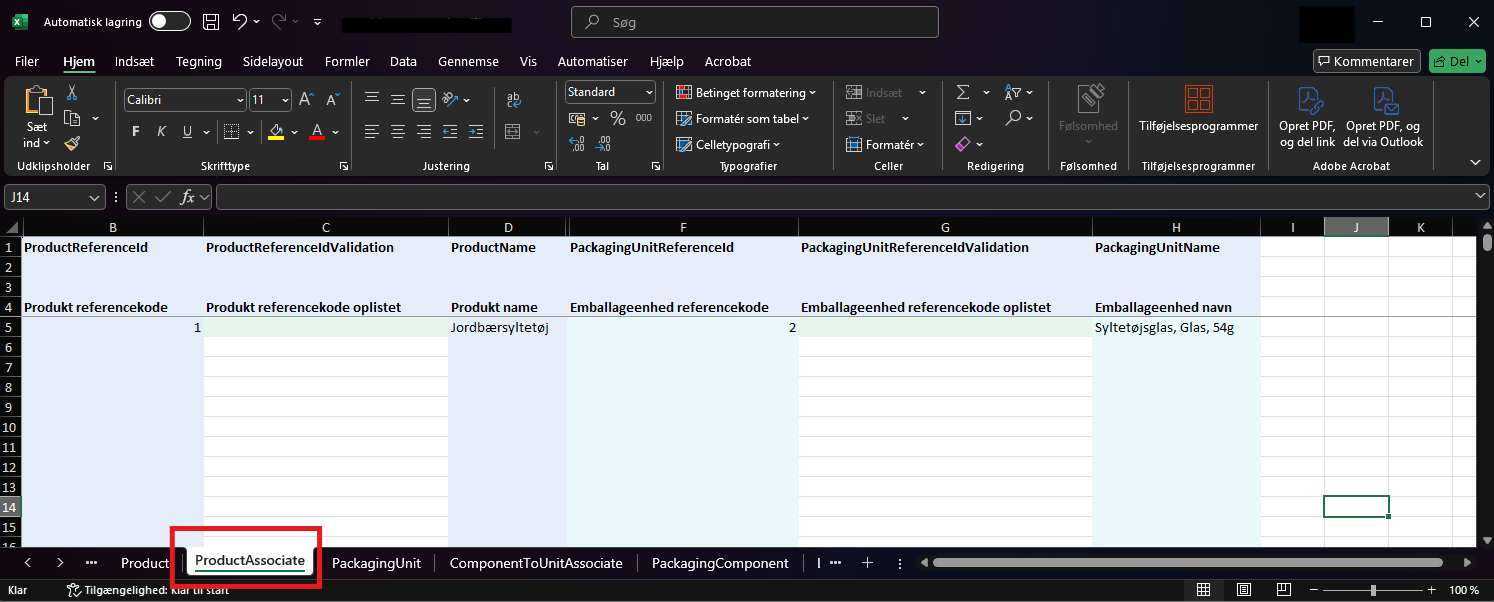

Go to the ProductAssociate tab:

  • Enter the product reference identifier in Column B.
  • Enter the packaging unit reference identifier in Column F.

Now the packaging unit is linked to the product.

Please note: The same packaging unit can be linked to multiple products if it is used across different products.

Step 7: Import the data template

When you are finished, save the file on your computer.

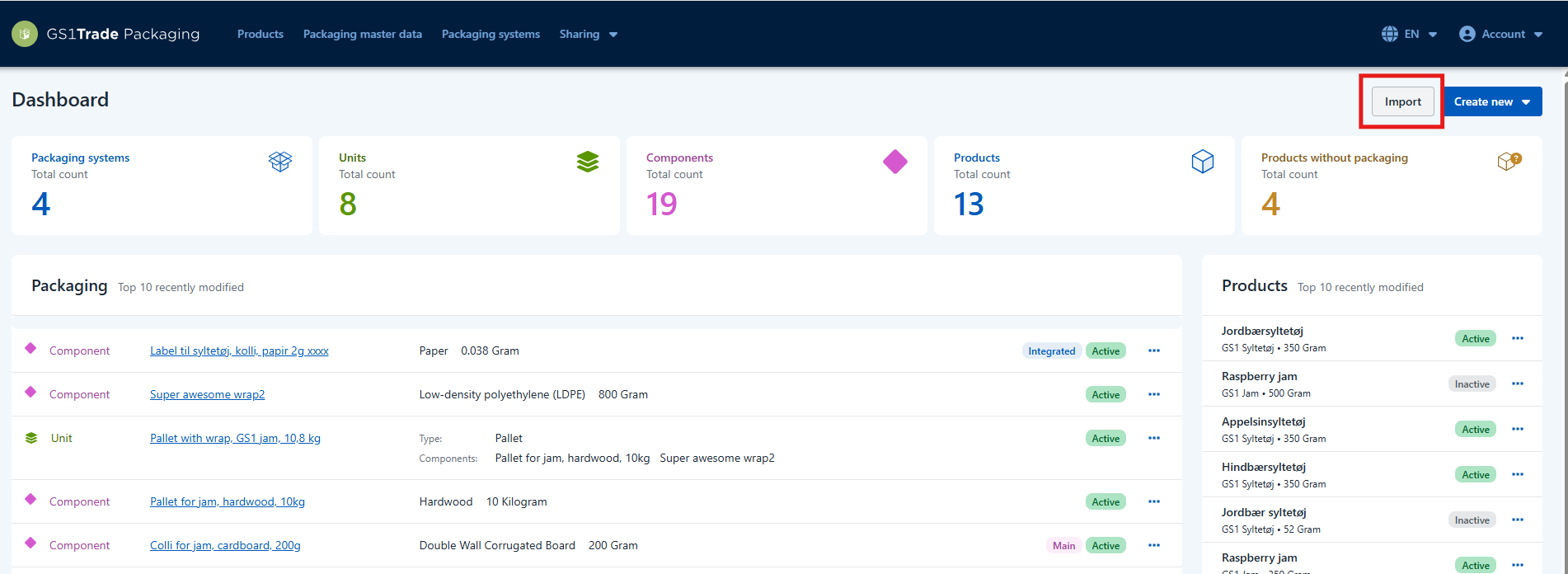

Open GS1Trade Packaging and select Import.

Click the upload field and select the Excel file, or drag and drop the file into the upload area. The processing will start automatically.

If the file is completed correctly, the status will change from Waiting in queue to Import completed.

If the import fails, the status will show an error message and an Excel file will be generated with a summary of the errors. See the section below for the most common errors.

Most common errors

  • GTIN is used multiple times in the file (duplicates). Search for duplicates in the file and correct them.
  • Unique IDs are used multiple times in the file. Typically the case if column B turns red.
  • Mandatory fields are missing. Check especially whether the "status" column on the far right has been filled in. On the Component tab, it is located all the way to the right.
  • An interval has been entered instead of an absolute value, e.g. in the weight field. We recommend entering an average value instead.
  • More than 200 rows have been entered per tab, or more than 1,000 rows in total in the template.
  • More than 50 characters have been entered in a field, e.g. in the product description field.

Do you want to download the guide?

arrow-right-circle
Get it here

Still need help? Then get to GS1 Denmark's support team. We're always ready to help.
